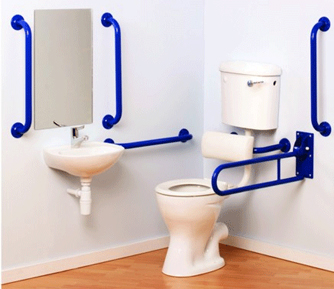

 | Doc M Pack Low Level With Blue Rails Ref: Doc M LLB
Brand New Low Level Doc M Pack which comes with blue grab rails that is on special offer for only a limited time. This Doc M Pack usally Retails at £ 679.11
Doc M Pack Includes:
- High Pan - (Height of Pan 450mm)
- Cistern with Fittings
- Basin (Overflow and waste featured in photo does not come included in the doc m basin due to hygiene reasons)
- Spactula Lever
- 5 x 600mm Blue Hand Rails
- Spray Mixer Tap
- 1x 890mm Blue Drop down rail
- Seat
- Plastic Bottle Trap
- Waste outlet
- 1 x Backrest Rail and Cusion
Please Note That The Mirror is Not Included
Dimensions of Toilet
Height Of Pan With Seat 495mm
Height Of Pan Without Seat 480mm
Width 360mm
Depth 666mm
Overall Height Of Toilet 850mm
Doc M Pack Information
Grab Rails Epoxy polyester powder coated grab rails, mixer tap and flushing lever not recommended for use in temperatures below 1°Celsius (33.8° Fahrenheit). (i) Available in blue or white to contrast with the background colour for compliance with Part M (ii) Use all available fixing ports when securing grab rails
Bottle Trap 32mm Telescopic Nuflo basin bottle trap (38mm seal), as per Building Regulations 1991 Approved Document H, not to be installed any further than 3 metres from soil stack. Requires 75mm trap seal water depth. Manufactured to BS3943
Inlet Valve Inlet valve is fitted with high pressure valve seat as standard; working pressures from 3 bar to 14 bar static. Alternative low pressure valve seat can be found in spares pack and will allow an operating range of 0.01 bar to 3 bar. Mixer Tap Minimum operating pressure is 0.2 bar with a maximum operating pressure of 5 bar. N.B: Mixer flow rate at 0.2 bar is 3 litres per minute.
Wall Fixings for details of appropriate wall fixings the installer is to contact the manufacturer of the sub-straight materials for guidance
Flush Lever (i) Left/right alternative must be on transfer (hinged arm support) side (ii) If installing multiple units, alternate between left and right hand flush
Thermoset Ring Seat Split resistant seat with top fittings manufactured to withstand approx: 158 kgs of weight
|
